Functions
AHD wireless transmitter receiver, suitable for wired truck camera transmitter up to 1080P panoramic wireless set, wireless working distance 200-300 meters. Mainly used for long-distance trucks, camping trailers, trucks with trailers.
Support AHD/TVI/CVI signal input and output (transmitter supports 720P, 1080P, CVBS signals, receiver video output is AHD 720P PAL). 12V-36V working voltage, suitable for different vehicles.
Features

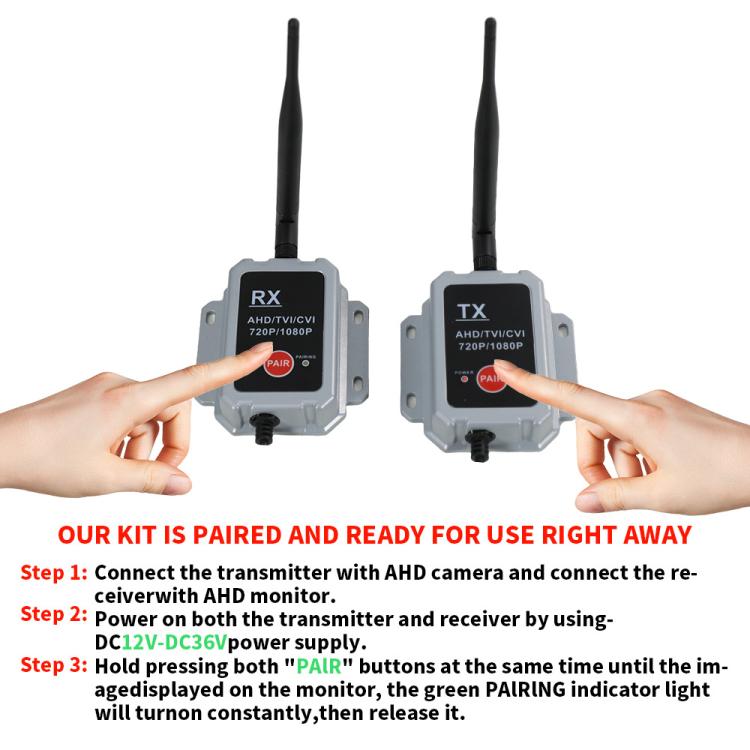

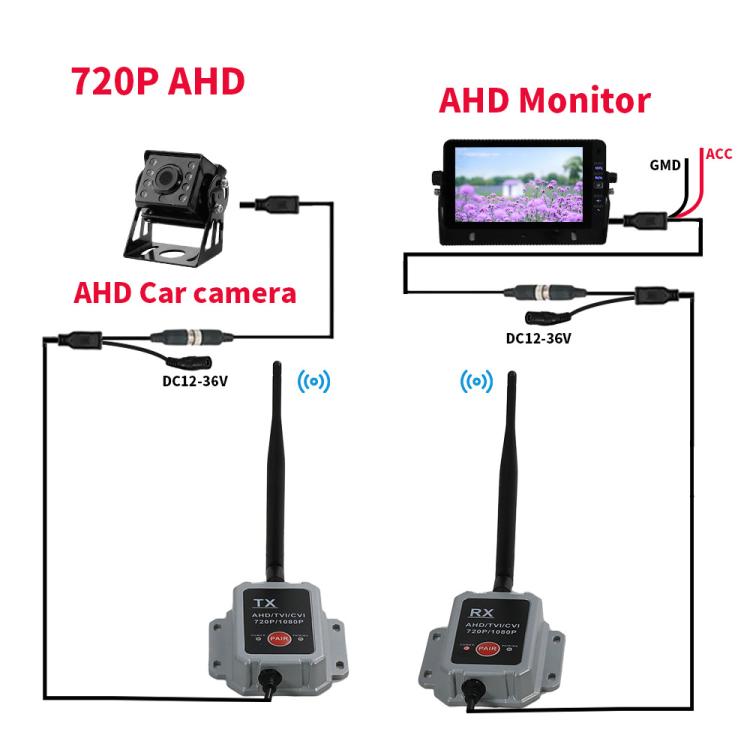

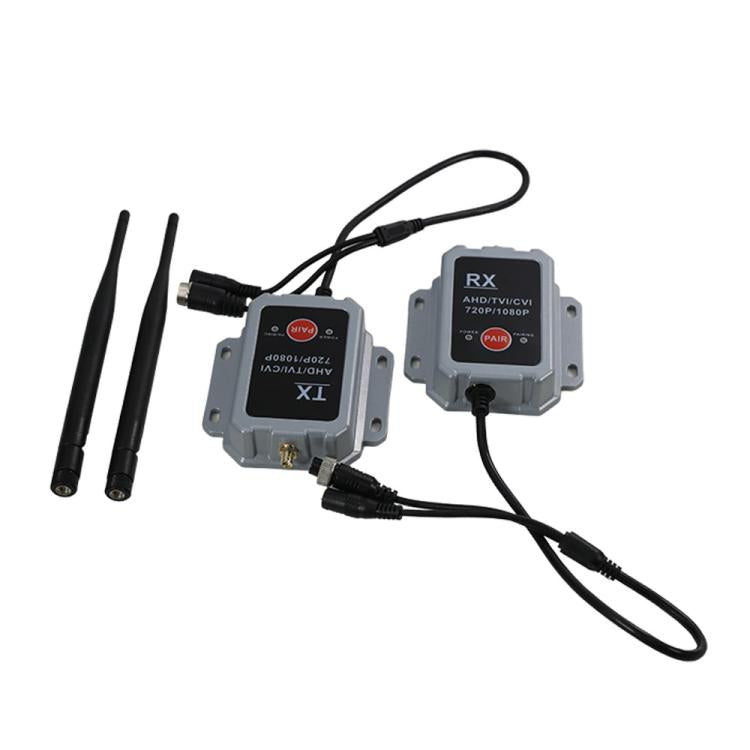

1. Wireless transmitter and receiver for wired cameras
2. Can transmit 1080p AHD/HDCVI/HDTVI CVBS signals

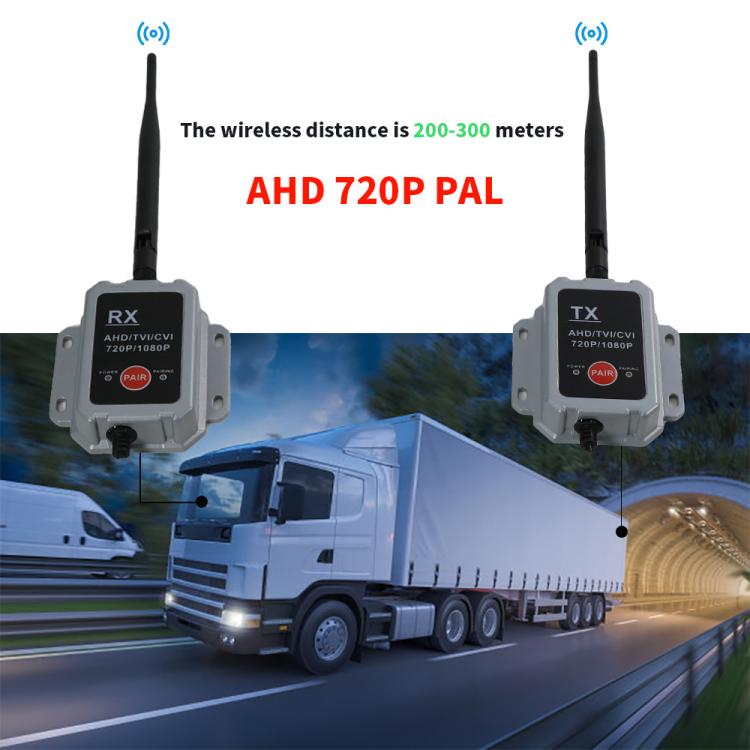

3. Wide signal coverage, wireless distance up to 200-300m
4. Will make adding cameras to trailers simple and installation time shorter
5. Perfect for trailers, RVs and any two-piece equipment

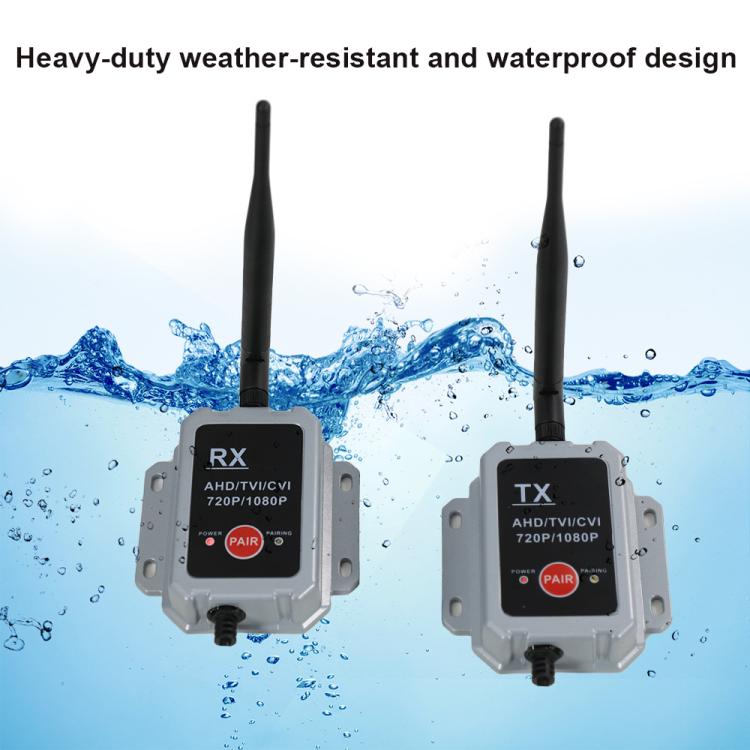

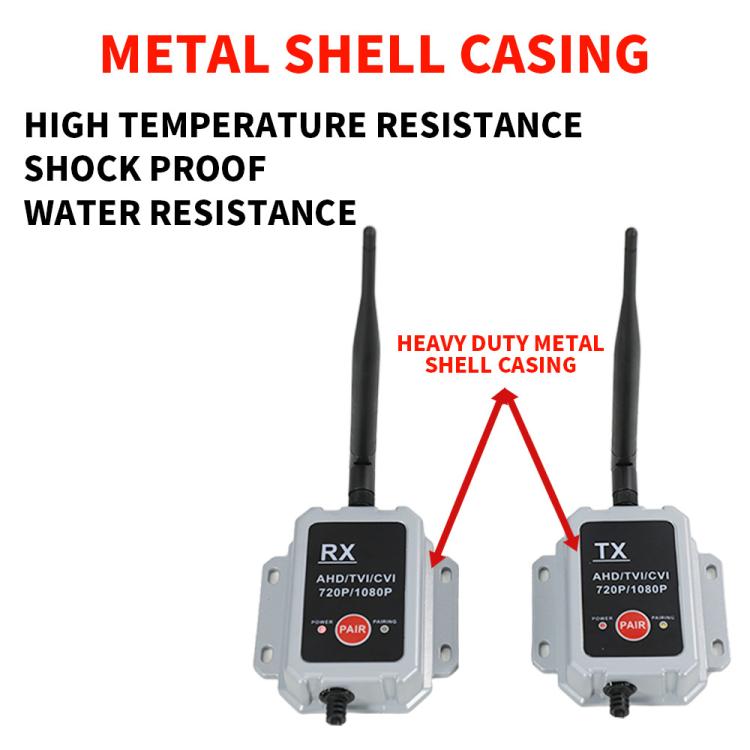

6. Heavy-duty weather-resistant and waterproof design, no fear of bad weather such as rain and snow
7. The receiver output of the monitor is 720p PAL format
Parameters
1. Power input: 12V-36V
2. RF band: 12Mbps
3. Frequency: 2400-2483.5 MHZ
4. Modulation: QPSK/16QAM
5. Working distance: 200-300m
6. Receiving sensitivity: -86dBm QPSK
7. Jump rate: 1200/S
8. Resolution: 1080P 25F/S
9. Compression code: H.264
10. Maximum delay: 100ms
11. TV mode: PAL/NTSC
TX Video AHD/TVI/CVI 1080P
RX Video AHD/TVI/CVI 720P (1080P is not recommended because the image is unstable and there will be freezes)
12. Operating temperature: -20 to +80 degrees Celsius
13. Operating humidity: 85% relative humidity
2.4G Wireless Transmitter Receiver Camera Transmitter Wireless Device for Truck and Bus, Wireless Transmitter Receiver Camera Device
$265.44
Shipping calculated at checkout.
AHD wireless transmitter receiver, suitable for wired truck camera transmitter up to 1080P panoramic wireless set, wireless working distance 200-300 meters. Mainly used for long-distance trucks, camping trailers, trucks with trailers.
Support AHD/TVI/CVI signal input and output (transmitter supports 720P, 1080P, CVBS signals, receiver video output is AHD 720P PAL). 12V-36V working voltage, suitable for different vehicles.
Features
1. Wireless transmitter and receiver for wired cameras
2. Can transmit 1080p AHD/HDCVI/HDTVI CVBS signals
3. Wide signal coverage, wireless distance up to 200-300m
4. Will make adding cameras to trailers simple and installation time shorter
5. Perfect for trailers, RVs and any two-piece equipment
6. Heavy-duty weather-resistant and waterproof design, no fear of bad weather such as rain and snow
7. The receiver output of the monitor is 720p PAL format
Parameters
1. Power input: 12V-36V
2. RF band: 12Mbps
3. Frequency: 2400-2483.5 MHZ
4. Modulation: QPSK/16QAM
5. Working distance: 200-300m
6. Receiving sensitivity: -86dBm QPSK
7. Jump rate: 1200/S
8. Resolution: 1080P 25F/S
9. Compression code: H.264
10. Maximum delay: 100ms
11. TV mode: PAL/NTSC
TX Video AHD/TVI/CVI 1080P
RX Video AHD/TVI/CVI 720P (1080P is not recommended because the image is unstable and there will be freezes)
12. Operating temperature: -20 to +80 degrees Celsius
13. Operating humidity: 85% relative humidity
