1. Specifications: 40A/30A 12VDC
2. Coil latch type: single coil latching
3. Switching voltage: 14VDC (max)
4. Switching current: 40A/30A (max)
5. Contact opening time: 5ms
6. Termination style: Pin
7. Contact configuration: 1-Pair changeover
8. Load voltage: 80A/60A 12V5P (max)
9. Load current: 80/60A (max)
10. Coil power: 1.8W
11. Features: the AM107421 Improved Starter Relay Kit is designed to eliminate the voltage between the battery and the starter solenoid, resolving the issue of only hearing a "click" when starting the machine.
12. Replacement part Number: AM107421
13. The relay kit features insulated material, a high-strand copper core, ultra-low impedance, high efficiency, and rigorous testing to ensure reliability and durability.

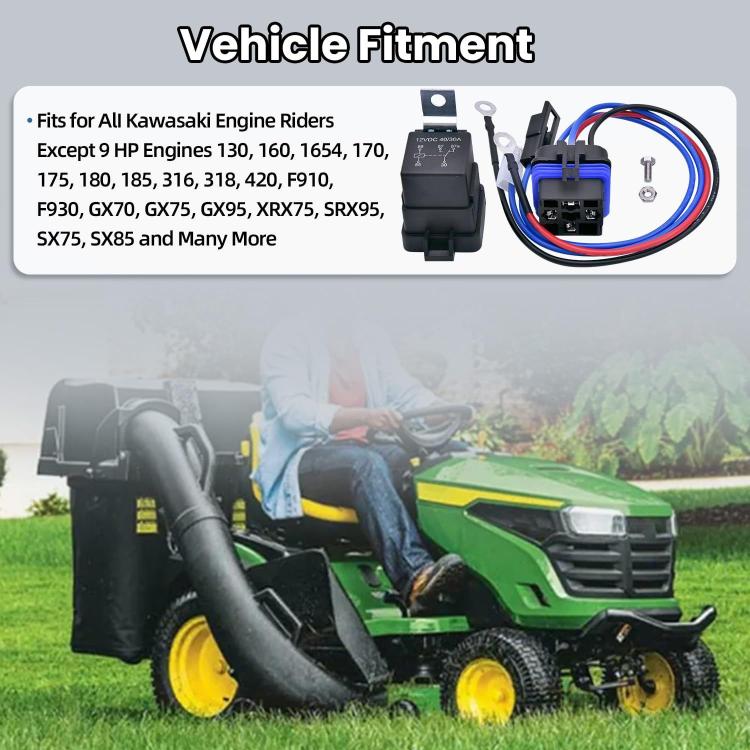

14. For all other Kawasaki Engine Riders, excluding 9-horsepower models: 130, 160, 165, 170, 175, 180, 185, 316, 318, 420, F910, F930, GX70, GX75, GX95, XRX75, SRX95, SX75, SX85, and more.
15. For John Deere models: 130, 160, 165, 170, 175, 180, 185, 240, 245, 260, 265, 285, 316, 318, 320, 325, 335, 345, 420, F510, F525, F910, F930, GX70, GX75, GX95, SX75, SX95, SRX75, SRX95, STX30, STX38, STX46, RX63, RX73, RX75, GT242, GT262, GT275, HD45X, HD75, LX172, LX173, LX176, LX178, LX186, LX188, GS25, GS30, GS45, GS75

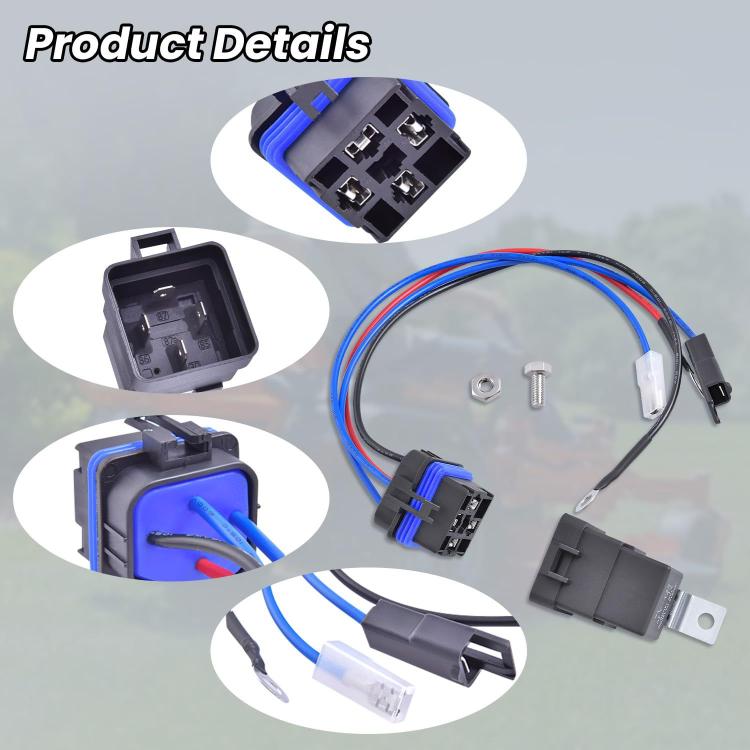

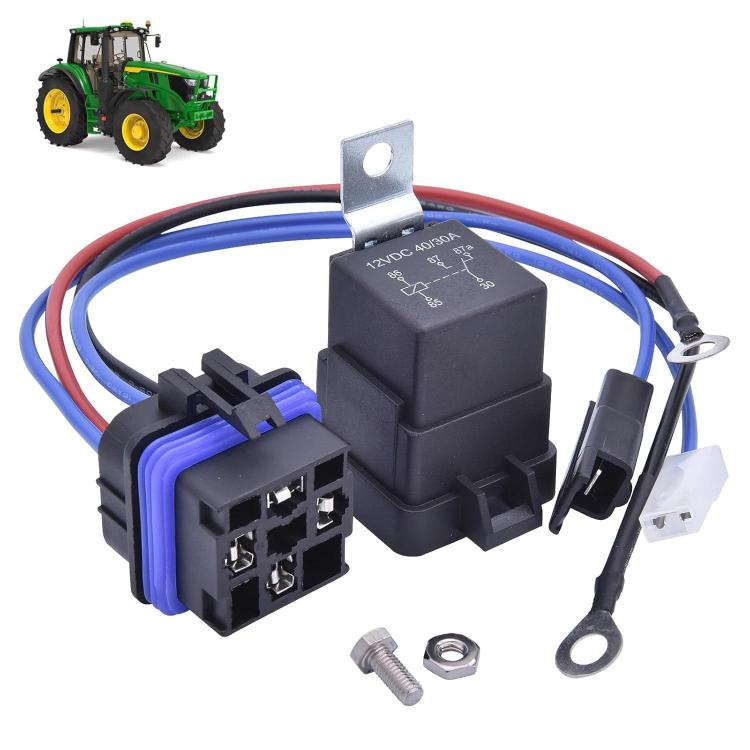

AM107421 Switch Starter Relay Kit for John Deere
$36.00
Shipping calculated at checkout.
1. Specifications: 40A/30A 12VDC
2. Coil latch type: single coil latching
3. Switching voltage: 14VDC (max)
4. Switching current: 40A/30A (max)
5. Contact opening time: 5ms
6. Termination style: Pin
7. Contact configuration: 1-Pair changeover
8. Load voltage: 80A/60A 12V5P (max)
9. Load current: 80/60A (max)
10. Coil power: 1.8W
11. Features: the AM107421 Improved Starter Relay Kit is designed to eliminate the voltage between the battery and the starter solenoid, resolving the issue of only hearing a "click" when starting the machine.
12. Replacement part Number: AM107421
13. The relay kit features insulated material, a high-strand copper core, ultra-low impedance, high efficiency, and rigorous testing to ensure reliability and durability.
14. For all other Kawasaki Engine Riders, excluding 9-horsepower models: 130, 160, 165, 170, 175, 180, 185, 316, 318, 420, F910, F930, GX70, GX75, GX95, XRX75, SRX95, SX75, SX85, and more.
15. For John Deere models: 130, 160, 165, 170, 175, 180, 185, 240, 245, 260, 265, 285, 316, 318, 320, 325, 335, 345, 420, F510, F525, F910, F930, GX70, GX75, GX95, SX75, SX95, SRX75, SRX95, STX30, STX38, STX46, RX63, RX73, RX75, GT242, GT262, GT275, HD45X, HD75, LX172, LX173, LX176, LX178, LX186, LX188, GS25, GS30, GS45, GS75
