1. Weight: 250G
2. Wire length: 25CM
3. Output current: 35A
4. Output voltage: 14.5V
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is conducive to heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
Applicable models:
For Gas Gas Wild HP 450 2003 2007 MFS400134009
For Suzuki AN Burgman 400 1999 2002 32800-14F01
For Suzuki AN Burgman 250 1998 2002 32800-14F00
For Suzuki DR S 800 1990 1995 32800-34A01
For Suzuki DR RSE 650 1991 1996 32800-34A01
For Suzuki DR S 750 1988 1989 32800-34A00
For Suzuki SV 650 1999 2002 32800-33C10

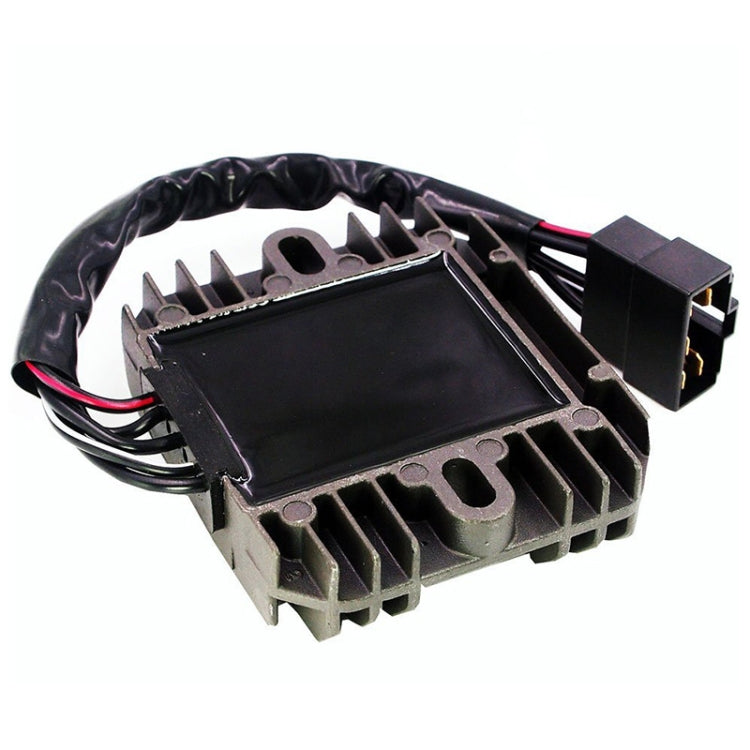

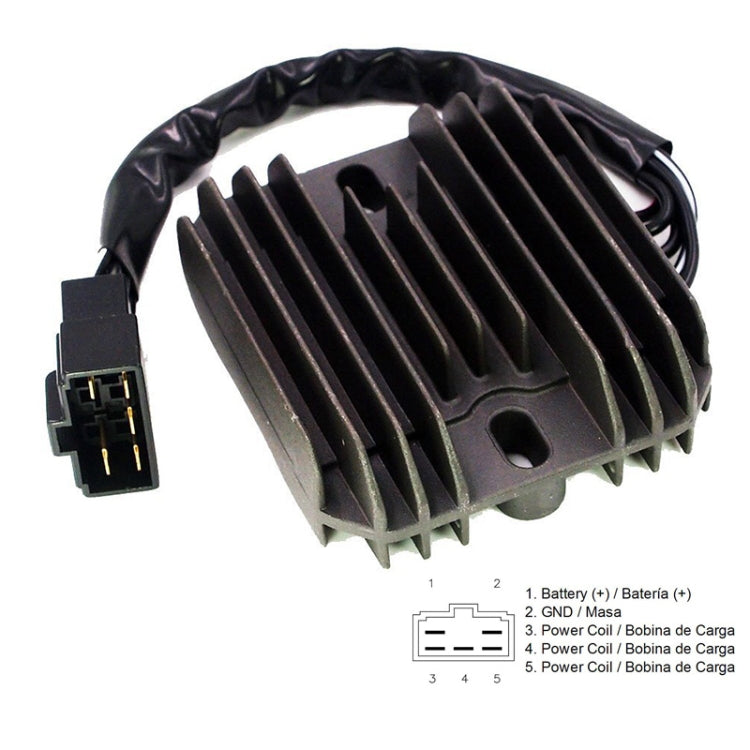

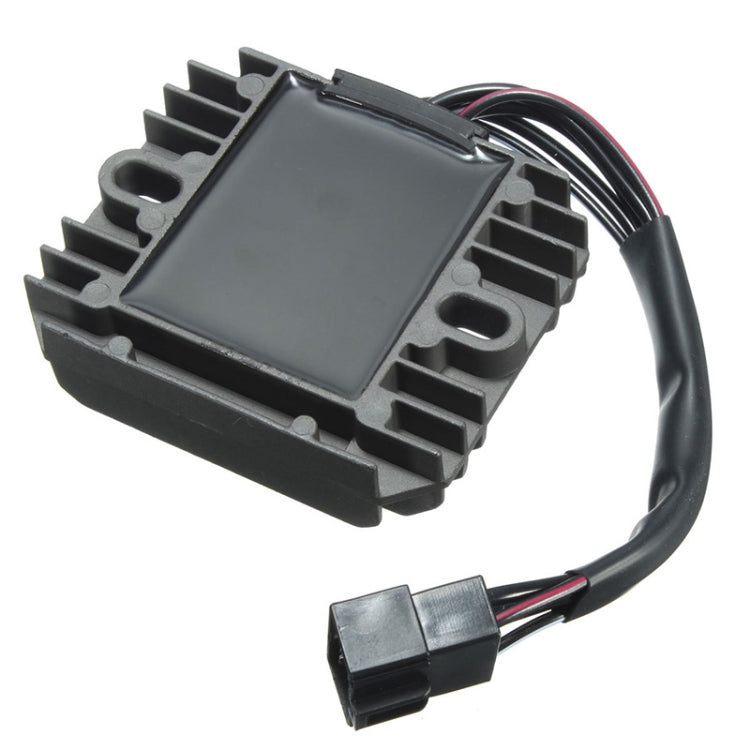

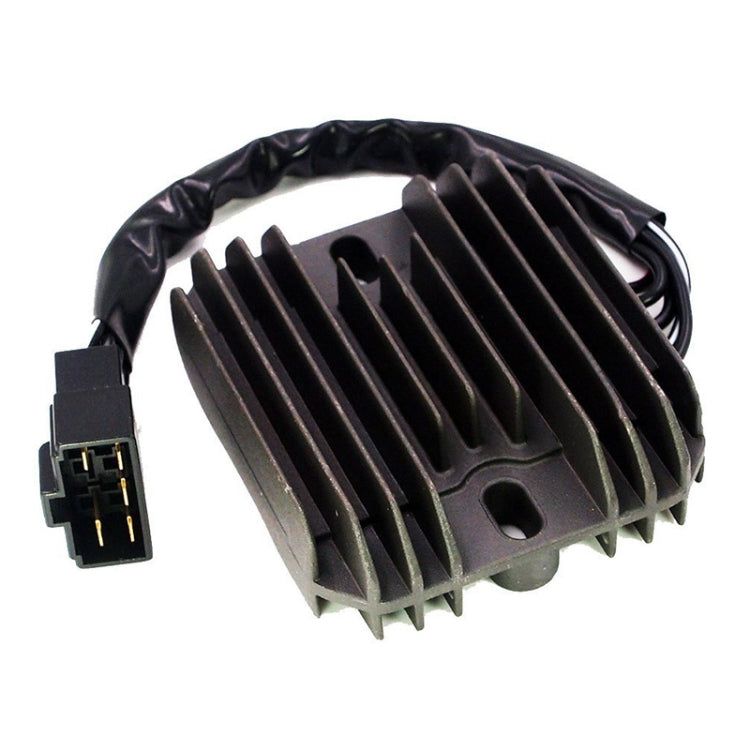

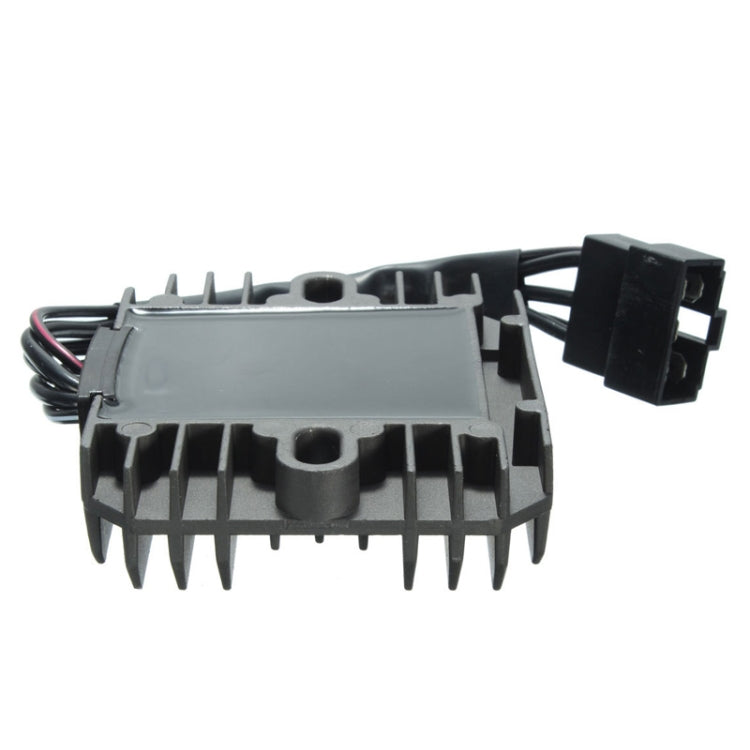

Motorcycle Rectifier For Suzuki GSXR600 GSXR750 GSXR1000, 2002.2
$35.32
Envío calculado en el pago.
1. Weight: 250G
2. Wire length: 25CM
3. Output current: 35A
4. Output voltage: 14.5V
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is conducive to heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
Applicable models:
For Gas Gas Wild HP 450 2003 2007 MFS400134009
For Suzuki AN Burgman 400 1999 2002 32800-14F01
For Suzuki AN Burgman 250 1998 2002 32800-14F00
For Suzuki DR S 800 1990 1995 32800-34A01
For Suzuki DR RSE 650 1991 1996 32800-34A01
For Suzuki DR S 750 1988 1989 32800-34A00
For Suzuki SV 650 1999 2002 32800-33C10
